HALDEX DIAG+ 6.19 [2025.03]

haldex

Relevant details

USD 15.00

Actions

Download The Data Sheet

Complete information

Description HALDEX DIAG IS A PROGRAM THAT ALLOWS YOU TO DIAGNOSE THE SYSTEM'S FAULT CODES, ODOMETER DATA AND CHANGE TRAILER PARAMETERS.
Brand haldex
Category others
File Size 6.83 MB
Size Installed 22.80 MB
Region ALL REGIONS
Os Supported* Windows 11 x64, Windows 10 x64
License time UNLIMITED

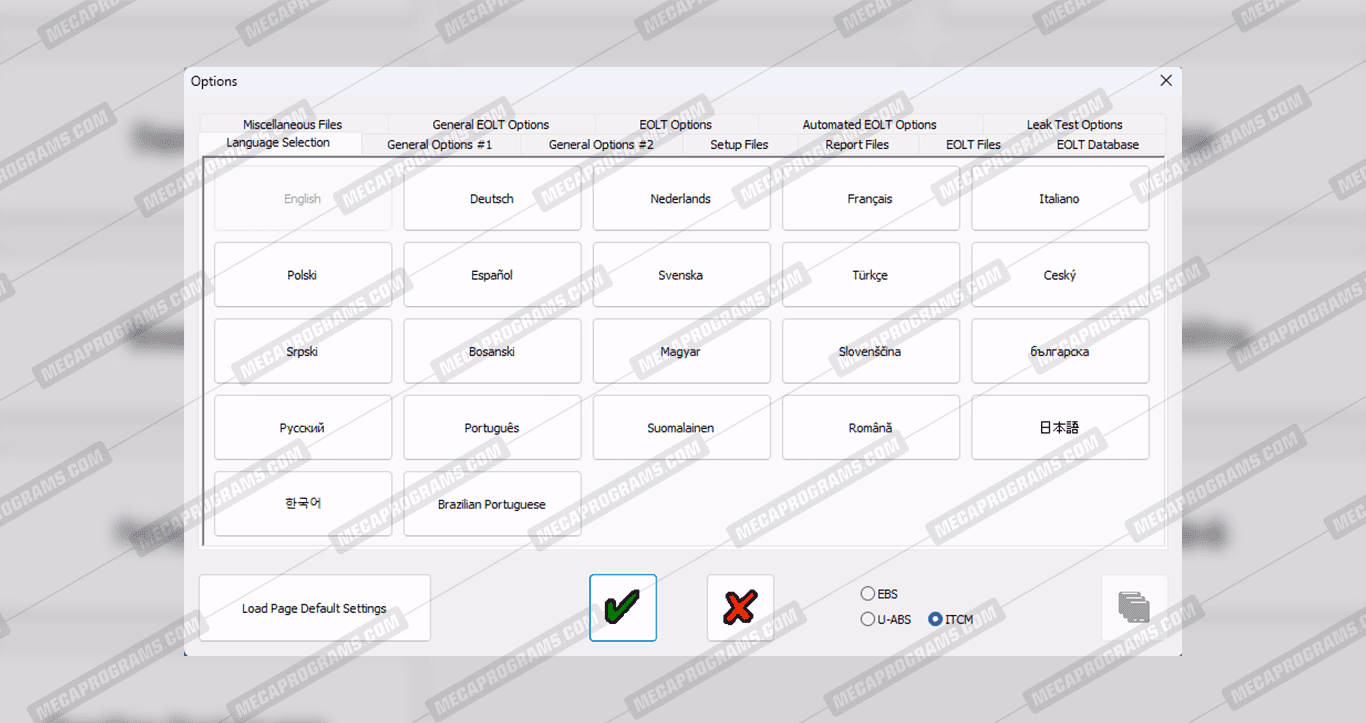

Database Language ENGLISH, FRENCH, GERMAN, SPANISH, PORTUGUESE, POLISH, ITALIAN, CHINESE, JAPANESE, KOREAN, TURKISH, NEDERLANDS
Interface Language ENGLISH, FRENCH, GERMAN, SPANISH, PORTUGUESE, POLISH, ITALIAN, TURKISH, CHINESE, KOREAN, JAPANESE, NEDERLANDS
Software Type DIAGNOSTIC
Demo Server Not Available

* Which OS data is supported and which is not is based on the information that Mecaprograms has verified so far. There may be other OS that we have not evaluated and that may be compatible or, failing that, may not be. Mecaprograms assumes responsibility only for the tests that we have carried out and the guarantees that we can offer based on them.

Relevant features

Updates

No information available

Support models

Compatible Vehicles


> U-ABS assemblies:

Premium (1M, 2M, 3M capable, 3 AUX)

Premium ECU only

Standard (1M, 2M capable, 1 AUX)

Standard ECU only

Basic (2S / 2M only capable, no AUX)

Basic ECU only

> 1M valve assemblies:

2 delivery ports, metric threads with DIN connector

6 delivery ports, metric threads with DIN connector

1M valve mounting bracket

> Info Centre 2:

Haldex Info Centre 2

Haldex Info Centre 2 ADR

> Sensor kit:

Angled (inc. retaining clip)

Straight (inc. retaining clip)

> ISO 7638 socket kit

> U-ABS DIAG+ cable kit:

ECU / pc interface cable (6.5 m)

EB+ ISO diagnostic cable

EB+ SOV / pc interface cable (6.5 m)

Transit case

> U-ABS DIAG+ interface kit:

USB pc interface (DIAG+)

USB cable

> Warning lamp:

Green warning lamp

Bulb (24 V - 5 W) double pole

> Park & shunt Part number

Combined park & shunt

> TPMS:

Receiver control unit (RCU)

Wheel unit sensor (WUS)

Cable / clamp assembly

Cable stretcher tool

Wheel unit sensor indicator label

TPMS trigger (hand unit)

> U-ABS ISO cables:

ISO 7638 to ECU

ISO 7638 to U-ABS power

Power A ECU aftermarket

Power to power

U-ABS ISO 7638 splitter box

> U-ABS 24N cables:

Power B

24N to DIN

24N ECU aftermarket

> U-ABS solenoid cables:

2M solenoid (0.75 mm2 )

3M solenoid (1.5 mm2 )

> U-ABS auxiliary cables:

Auxiliary cable

Auxiliary cable to DIN connector

Male to female to female (2x2x2 way)

Auxiliary (3 pole) to auxiliary (3 pole)

Y-splitter 3x3x3 way

> U-ABS diagnostic cables:

Info Centre 2 to side of vehicle

Side of vehicle (SOV) to ECU

Vehicle to pc interface (dongle)

DIAG to DIN

DIAG to pc interface (dongle)

DIAG to DIAG

Y-splitter 4x4x4 way

DIAG to female FCI connector

> U-ABS sensor cable:

Sensor

> EB+ Gen3 electronic control unit (ECU)

> EB+ Gen3 1M Slave

> EB+ Gen3 label

> COLAS®

> ILAS®-E

> TrCM+

> TEM®

> REV

> Control line sensor:

M16 x 1.5 thread for REV port

> Main assembly service kits:

QRV service kit

DCV service kit

> Info Point:

Info Point with 7 m cable

Info Point with 18 m cable

> Soft Docking:

Complete system with acoustic and optical aids

Kit without optical aid

Kit without acoustic aid

Basic kit

Lite kit

Sensor adjusting tool

> Lining wear system:

L = 2 m AUX cable - standard

Blanking plug (std version)

Sensor extension cable (5 m)

> EB+ Gen3 stability

> Electronic height sensor:

Height sensor cable (see AUX cables)

Linkage (vertical)

Linkage (horizontal)

> DIAG+:

EB+ Gen3 diagnostic cable kit:

ECU / pc interface cable (6.5 m)

EB+ ISO diagnostic cable

EB+ SOV / pc interface cable (6.5 m)

Transit case

> EB+ interface:

EB+ interface kit:

USB pc interface (DIAG+)

USB cable

> Fleet+:

Fle4et+ interface kit:

USB pc interface (Fleet+)

USB cable

> EB+Gen3 ISO cables:

SO 7638 socket (unfused)

ISO 7638 plug (unfused)

Power A

ISO 7638 to 7-pin DIN connector

ISO cable assembly male / female

ISO power A to 7-pin connector

ISO 12098 / ISO 1185 (24N)

ISO 7638 Diagnostic

> EB+Gen3 auxiliary cables:

Auxiliary cable

Auxiliary cable to DIN connector

Male to female to female (2x2x2 way)

Male to female to female (3x2x2 way)

Auxiliary (3 pole) to auxiliary (3 pole)

Y-splitter 3x2x2 way

Y-splitter 3x3x3 way

Super AUX cable

Power B to ISO 15170 Super AUX

Power B to ISO 15170 Super AUX

Sensor cable

> EB+Gen3 diagnostic cables:

Info Centre 2 to side of vehicle

Side of vehicle (SOV) to ECU

Vehicle to pc interface (dongle)

DIAG to DIN

DIAG to pc interface (dongle)

DIAG to DIAG

Y-splitter 4x4x4 way

DIAG to female FCI connector

> 3M Link cable:

Sensor cable

> ABS POWER and Warning Lamp Connector With AUX 0

> CAN Communications Connector

> Valve Solenoid 21 Cable

> Valve Solenoid 22 Connector

> AUX 1 or Valve Solenoid 23 Connector

> AUX 2 IN/OUT Connector

> AUX 3 IN/OUT Connector

> AUX 4 IN Connector

> AUX 5 IN Connector

> Wheel Speed Sensors S2B, S1B, S1A, S2A
